Uniform Polyiamond Stacks

A uniform polyiamond stack is a figure formed by joining copies of a polyiamond, having the same even contiguous length of cells in every row. In other words, the rows form congruent parallelograms. Thanks to Joyce Michel for suggesting this characterization.

Such a figure is compatible with every polyiamond with height 1. It is equivalent to a tiling of a cylinder, but not every cylindrical tiling defines a uniform stack.

Here are minimal known uniform stacks for polyiamonds of orders 1 through 10. If you find a smaller solution or solve an unsolved case, please write.

See also Uniform Polyomino Stacks.

Moniamond

Diamond

Triamond

Tetriamonds

Pentiamonds

Impossible

Hexiamonds

Impossible

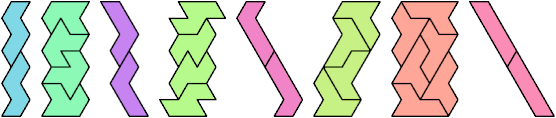

Heptiamonds

Impossible

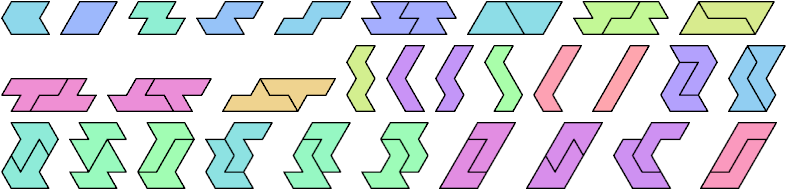

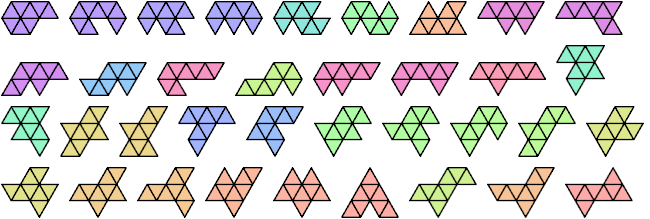

Octiamonds

Impossible

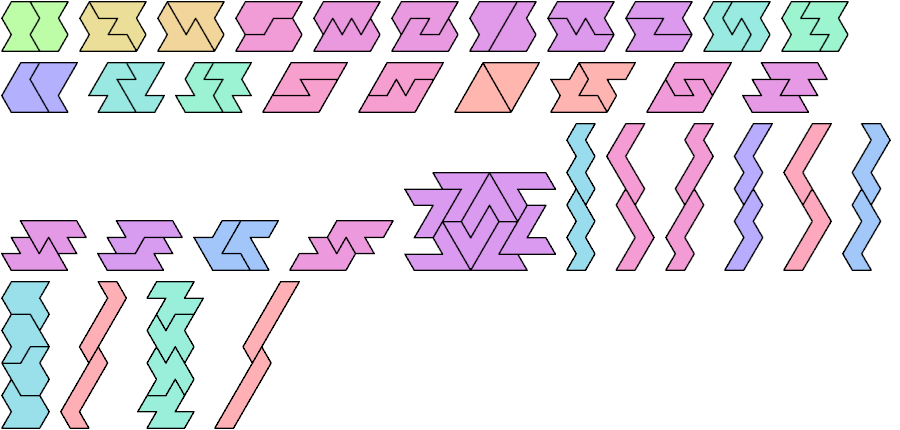

Enneiamonds

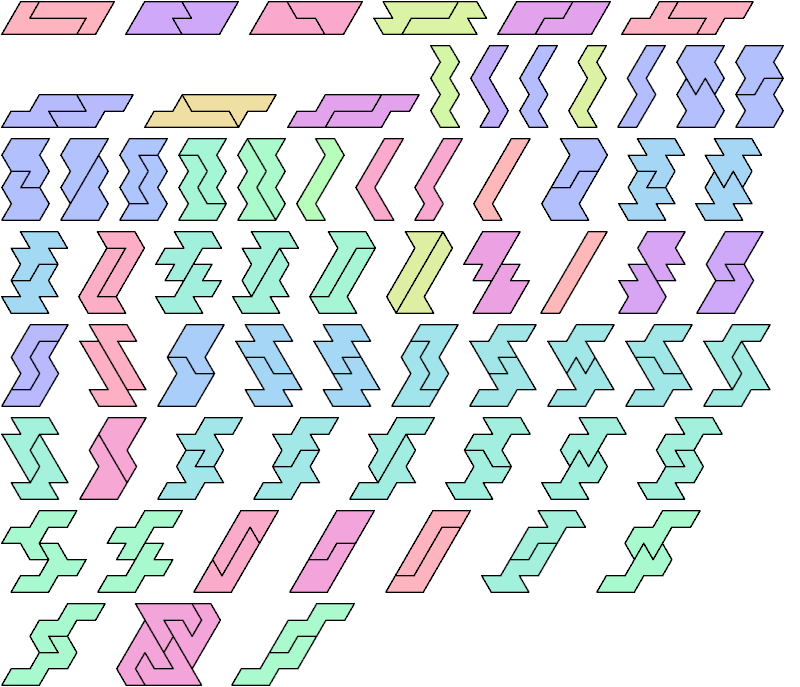

Dekiamonds

Last revised 2023-06-02.
