Multiple Compatibility for Polyhexes

Introduction

A set of polyforms is compatible if there exists a figure that each of them can tile. Here are minimal figures that can be tiled by a given number of n-hexes. If you find a smaller solution or one that can be tiled by more n-hexes, please write.

For polyominoes see Multiple Compatibility for Polyominoes. For polyiamonds see Multiple Compatibility for Polyiamonds.

Trihexes

3 Trihexes

Tetrahexes

4 Tetrahexes

6 Tetrahexes

Pentahexes

5 Pentahexes

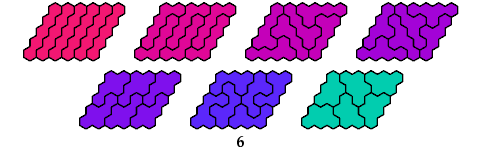

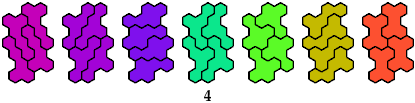

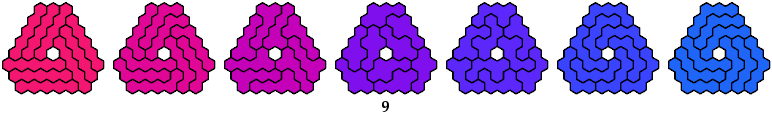

7 Pentahexes

5A, 5D, 5H, 5J, 5P, 5Q, 5X

Solutions Using Other Pentahexes

5E, 5K, 5R, 5Y

5I, 5L, 5N

5C, 5V

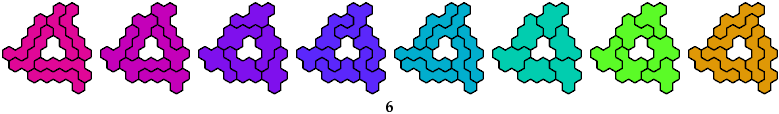

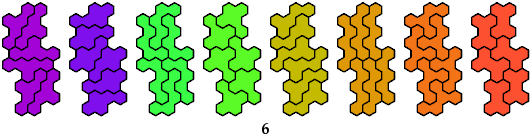

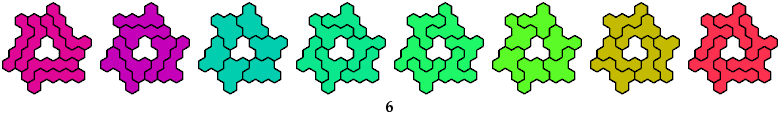

8 Pentahexes

5E, 5F, 5H, 5K, 5P, 5Q, 5W, 5X

Solutions Using Other Pentahexes

5A, 5D, 5L, 5R, 5T, 5Y

5N, 5Z

5C, 5V

5J, 5S, 5U

See below.

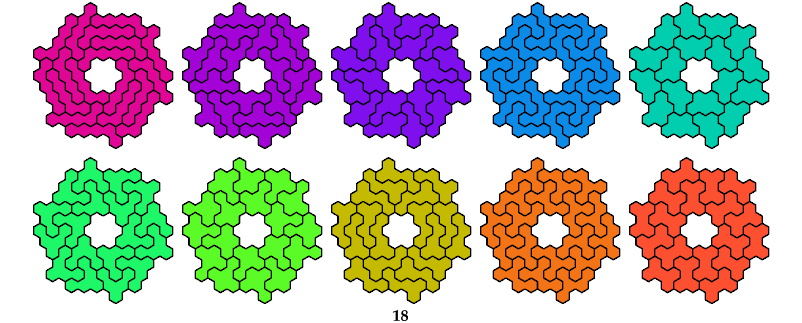

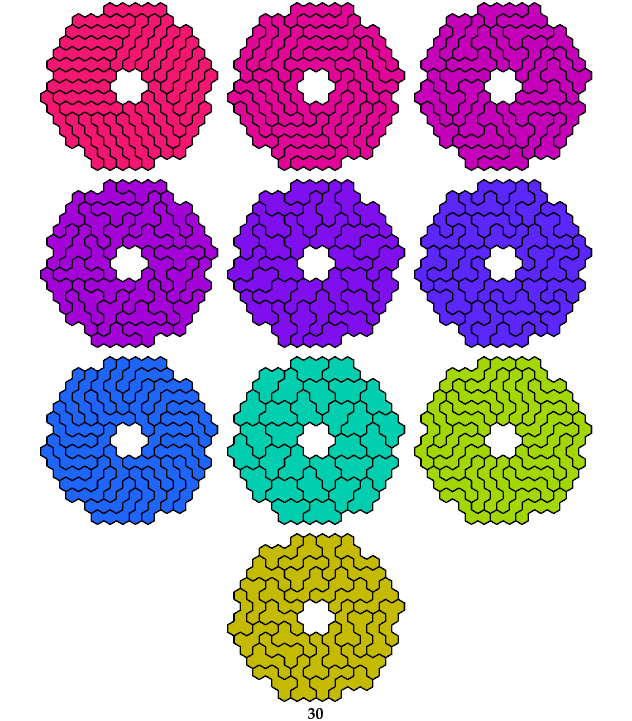

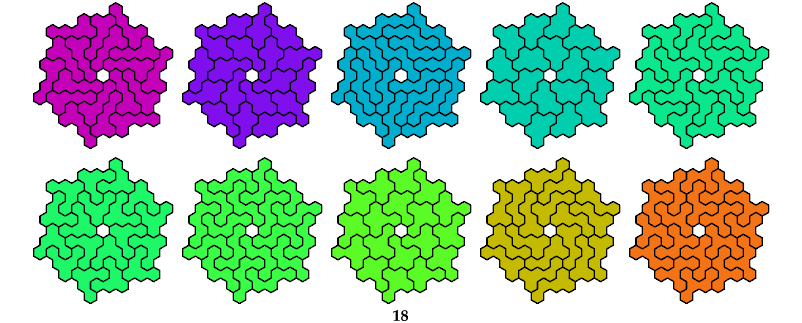

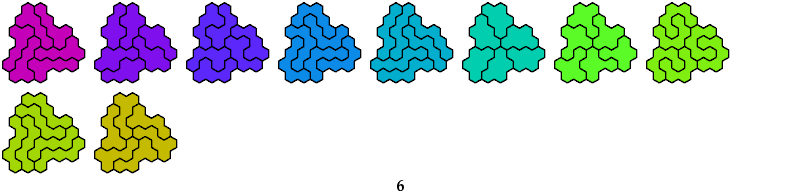

10 Pentahexes

5D, 5J, 5K, 5N, 5P, 5Q, 5S, 5U, 5Y, 5Z

Solutions Using Other Pentahexes

5A, 5F, 5H, 5R

5A, 5E, 5H, 5L, 5X

5I, 5V

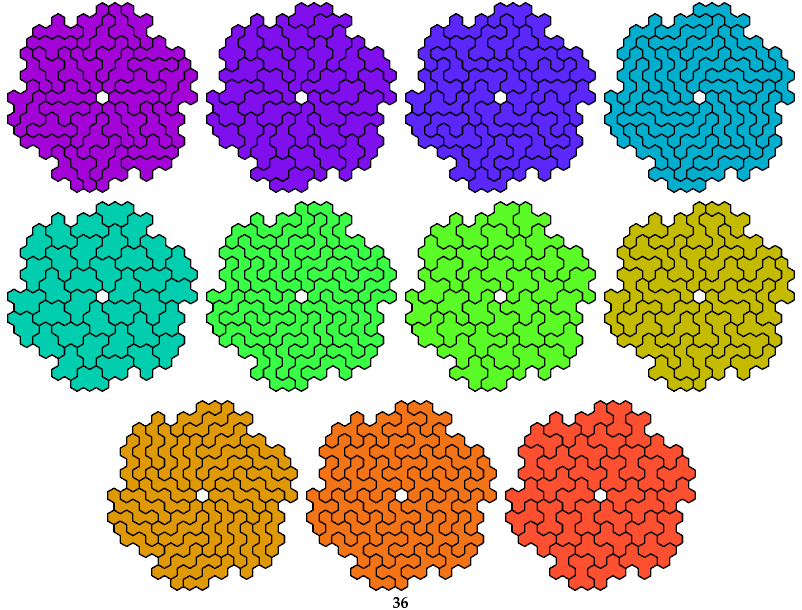

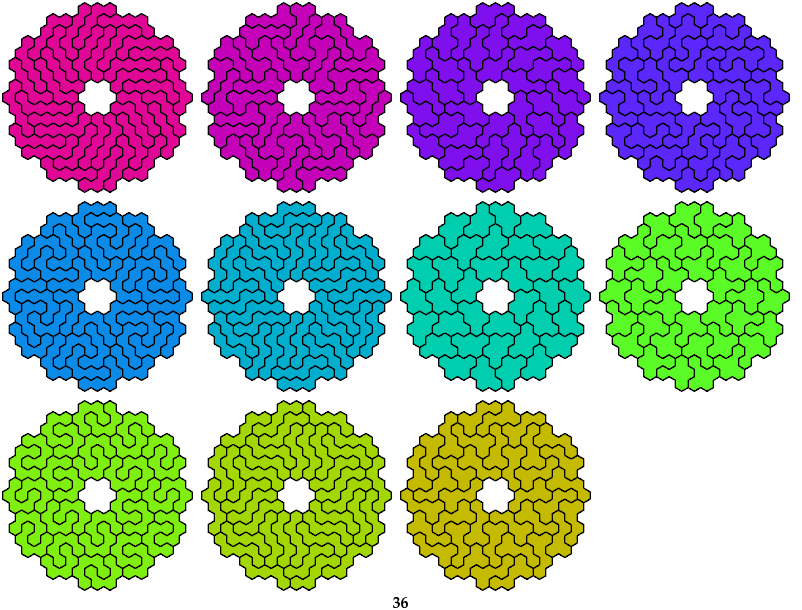

11 Pentahexes

5D, 5E, 5F, 5H, 5K, 5N, 5P, 5Q, 5W, 5X, 5Z

Solutions Using Other Pentahexes

5J, 5L, 5S, 5U, 5Y, 5Z

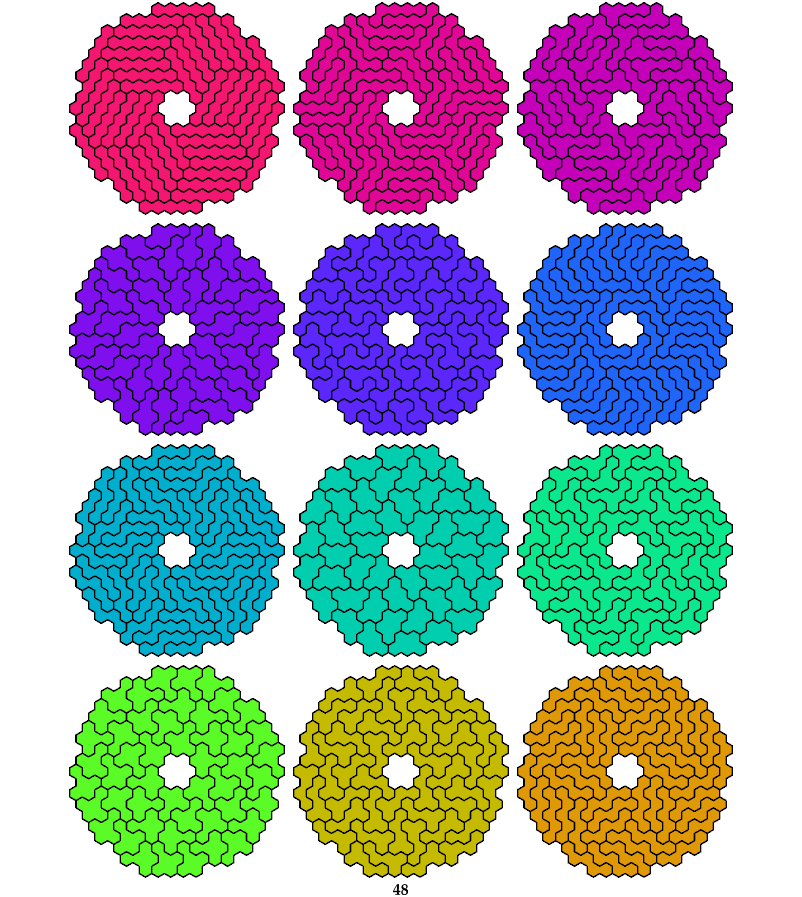

12 Pentahexes

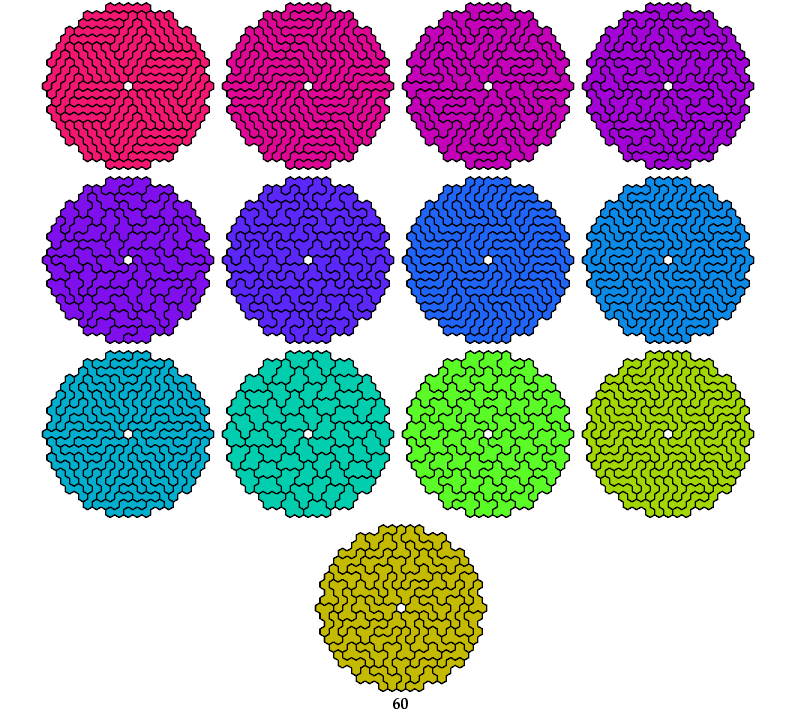

13 Pentahexes

Hexahexes

10 Hexahexes

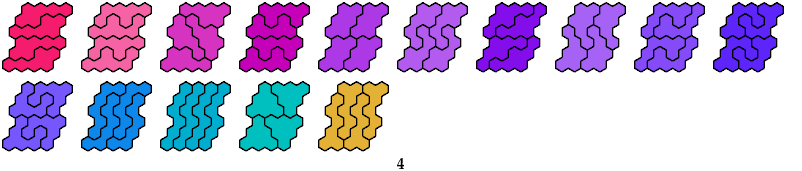

15 Hexahexes

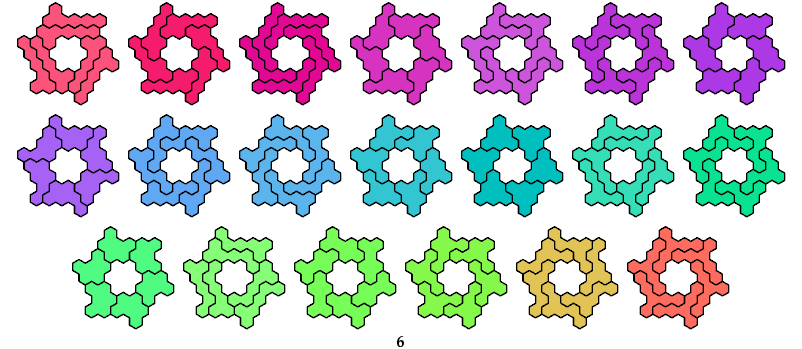

20 Hexahexes

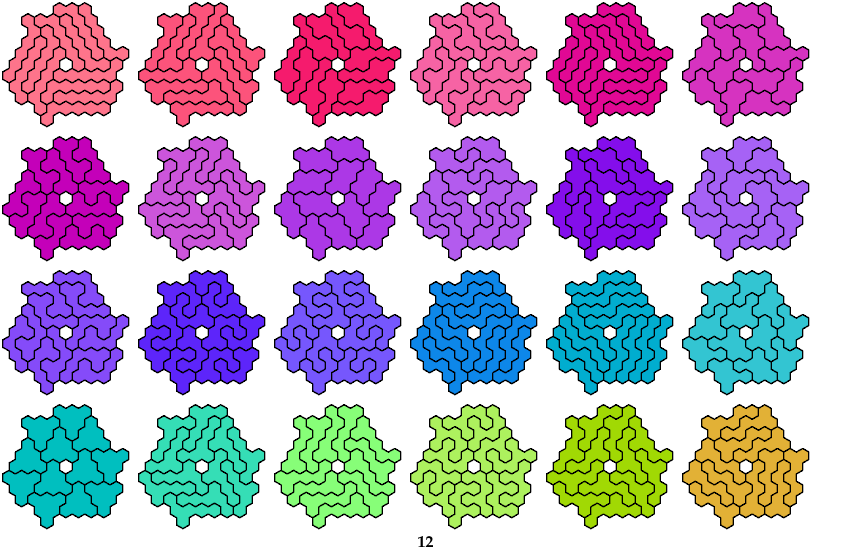

24 Hexahexes

Last revised 2013-11-25.
