Tiling a Chamfered Rectangle with Two Tetraboloes

Introduction

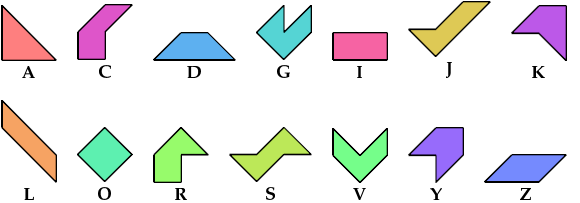

A tetrabolo or tetratan is a plane figure formed by joining four equal isosceles right triangles at their legs or hypotenuses. Here are the 14 tetraboloes, with Erich Friedman's names:

A chamfered rectangle is a rectangular polyabolo with its corner cells clipped diagonally. To prevent cuts from meeting, I require the dimensions of the rectangle to be 3 or greater.

Here I show the minimal known chamfered rectangle that can be tiled by a pair of tetraboloes, using at least one copy of each.

See also

  • Tiling a Chamfered Rectangle with Two Pentaboloes
  • Tiling a Chamfered Rectangle with a Polyabolo
  • 5 Tiles

    8 Tiles

    14 Tiles

    17 Tiles

    20 Tiles

    38 Tiles

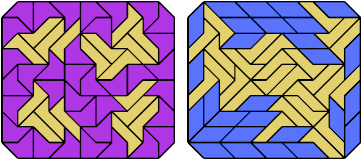

    54 Tiles

    71 Tiles

    76 Tiles

    Last revised 2024-04-10.
