Pentacubes in a Box

Introduction

A pentacube is a solid made of five equal cubes joined face to face. There are 23 such figures, not distinguishing reflections and rotations:

The six blue tiles have distinct mirror images. Kate Jones's systematic names are shown in green. In both nomenclatures pentacubes that lie all in one plane are named for the corresponding pentominoes.

Can a rectangular prism, or box, be filled with copies of a pentacube? For each pentacube, here is the smallest known box that it can fill. Some pentacubes have other solutions with the same volume and different dimensions. Torsten Sillke's polycube box tiling page identifies many boxes besides the smallest that can be tiled by polycubes. Toshihiro Shirakawa's Box Packing Collection has extensive box tiling data for polycubes, edge-polycubes, and polyhypercubes.

Most of these constructions are taken from the text representations in Michael Reid's Box Collection. Most of these solutions are Mike's. In his collection you can also find solutions for polycubes of other sizes.

Neither the C nor the X pentacube can tile a box. See below for hybrid solutions.

Solutions

Cross-sections are shown from back to front.

A

108 tiles, 4×9×15

Mike Reid

This was the first solution found:

144 tiles, 4×9×20

Helmut Postl

This pentacube also tiles a 6×10×10 box (120 tiles) and an 8×8×10 box (128 tiles).

B

10 tiles, 2×5×5

C

Impossible even with reflection

See below for hybrid solutions.

E

4 tiles, 2×2×5

Primes: 2×2×5, 3×4×5, 3×5×5, 3×5×6, 2×5×7, 3×5×7, 2×3×10, 3×3×10, 3×3×15.
Without reflection: 2×2×5, 4×5×5, 5×5×5, 3×5×6, 5×5×7, 3×5×8, 3×5×9, 3×5×10, 3×5×11, 3×5×13.

F

36 tiles, 3×6×10

Patrick Hamlyn

H

4 tiles, 2×2×5

I

1 tile, 1×1×5

Primes: 1×1×5.

J

6 tiles, 2×3×5

Without reflection: 12 tiles, 3×4×5

K

18 tiles, 3×5×6

L

2 tiles, 1×2×5

Primes: 1×2×5, 3×5×5, 1×7×15.

M

198 tiles, 6×11×15

Toshihiro Shirakawa (2014)

N

8 tiles, 2×4×5

P

2 tiles, 1×2×5

Primes: 1×2×5, 3×3×5, 1×7×15.

Q

4 tiles, 2×2×5

Patrick Hamlyn

R

28 tiles, 4×5×7

Without reflection: 64 tiles, 5×8×8

Helmut Postl

S

18 tiles, 3×5×6

Patrick Hamlyn

Without reflections: 24 tiles, 4×5×6

Patrick Hamlyn

T

60 tiles, 3×10×10

Frits Göbel

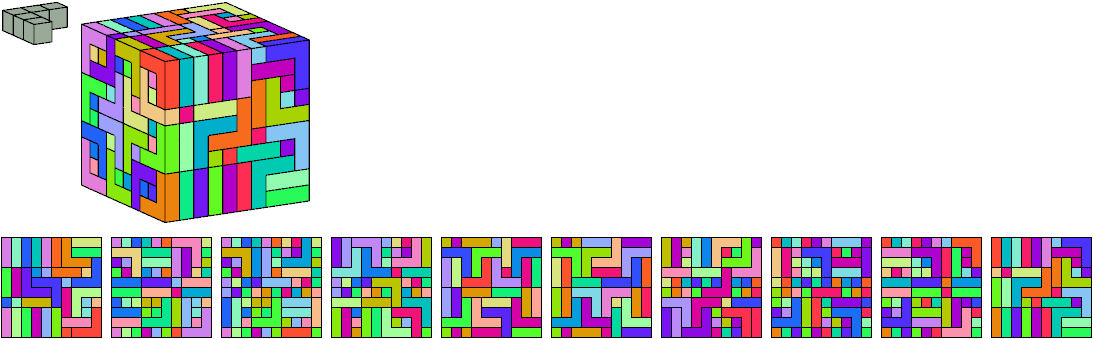

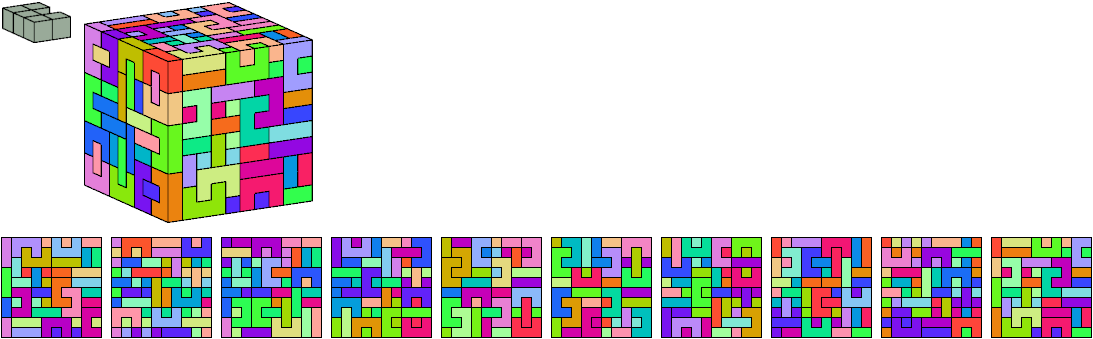

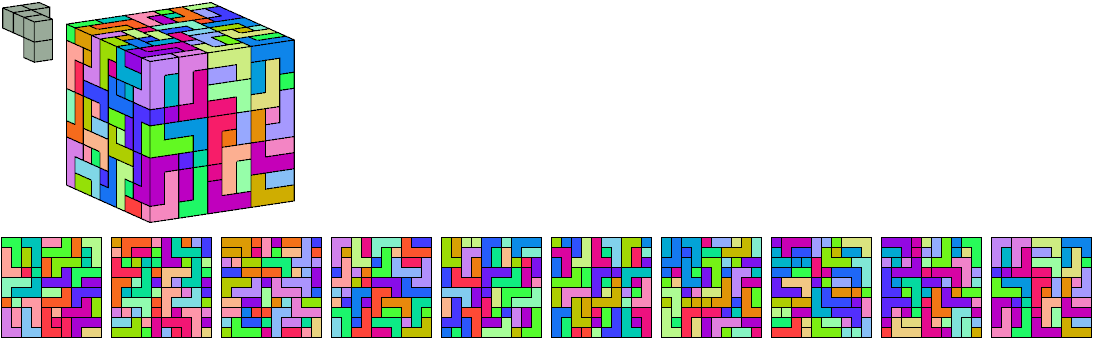

Cubical

Toshihiro Shirakawa

U

6 tiles, 2×3×5

V

18 tiles, 3×5×6

W

36 tiles, 5×6×6

Torsten Sillke

X

Impossible

See below for hybrid solutions.

Y

10 tiles, 1×5×10

David Klarner

Z

120 tiles, 6×10×10

Wolf

Cubical

Toshihiro Shirakawa

Hybrid Solutions

Neither the C nor the X pentacube can tile a box. The two together can.

With reflection: 100 C tiles, 40 X tiles, 7×10×10.

George Sicherman

Without reflection: 128 C tiles, 72 X tiles, 10×10×10.

George Sicherman

Last revised 2016-06-21.
